支援自動產生 PDF 工時單的收支單

強化收支單的各功能。切換貨幣與日期的語言地區設定,對新的收支單自動產生 PDF 工時證明單。

Kevin Papst
提供者
Kevin Papst

Features

This bundle has the following features:

  • Automatic generation of a PDF with all contained timesheets
  • Configuration of a global language, which is used to format all invoices data (money, date, time).

You configure both settings via the global System > Settings screen or from the “Invoice settings” screen.

Automatic timesheet PDF

When creating a new invoice, another PDF will be created, which contains a summary grouped-by-project (on the first page) and the list of all contained timesheets (on the following pages).

The file can be downloaded on the invoice archive listing page, from the Timesheet action in the dropdown.

You could generate the same PDF using the export function in Kimai, but that requires manual steps:

  • changing to the export
  • filtering the exact same timesheets
  • creating the export
  • renaming the file to match the invoice

The used “export template” for this feature can be configured.

This feature needs to be activated by choosing an export template. By selecting the empty entry it can be deactivated again.

Data format language

In the core system of Kimai, you configure the language for an invoice via its template. Then this language is used for translations and also for the formatting of data.

This behavior might not be desired if you export invoice data e.g. to JSON and use that as input for further processing. Or if you translate your invoice to english for cross-country sales but still want to use your countries formats.

Without choosing a language the default behaviour is used.

Additional formats

This plugins ships renderer for other invoice template formats, such as:

  • JSON: with the file extension .json.twig
  • XML: with the file extension .xml.twig
  • PlainText: with the file extension .txt.twig

You can find pre-made templates for these renderer at https://github.com/kimai/invoice-templates/tree/main/data-transfer

安裝

複製檔案

Extract the ZIP file and upload the included directory and all files to your Kimai installation to the new directory:

var/plugins/InvoiceBundle/

The file structure needs to look like this afterwards:

var/plugins/
├── InvoiceBundle
│   ├── InvoiceBundle.php
|   └ ... more files and directories follow here ...

清除快取

After uploading the files, Kimai needs to know about the new plugin. It will be found once the cache was re-built. Call these commands from the Kimai directory:

How to reload Kimai cache

bin/console kimai:reload --env=prod

It is not advised, but in case the above command fails you could try:

rm -r var/cache/prod/*

You might have to set file permissions afterwards:

Adjust file permission

You have to allow PHP (your webserver process) to write to var/ and it subdirectories.

Here is an example for Debian/Ubuntu, to be executed inside the Kimai directory:

chown -R :www-data .
chmod -R g+r .
chmod -R g+rw var/

You might not need these commands in a shared-hosting environment. And you probably need to prefix them with sudo and/or the group might be called different from www-data.

更新

Updating the plugin works exactly like the installation:

  • Delete the directory var/plugins/InvoiceBundle/
  • Execute all installation steps again:
    • 複製檔案
    • 清除快取

變更記錄

Version 2.1.1

Compatibility: requires minimum Kimai 2.1.0

  • Changed: import Route attribute from correct namespace
  • Changed: use bundle identifier to load routes

Version 2.1.0

Compatibility: requires minimum Kimai 2.1.0

Use annotation type for routes

Version 2.0.3

Compatibility: requires minimum Kimai 2.0.0

Added: use -timesheet.pdf instead of .pdf as filename

體驗版本

如要測試此外掛程式,可前往體驗版網頁 demo.kimai.org:

使用者名稱: susan_super
密碼: password

在此處找到更多測試帳號.

使用截圖

Screenshot

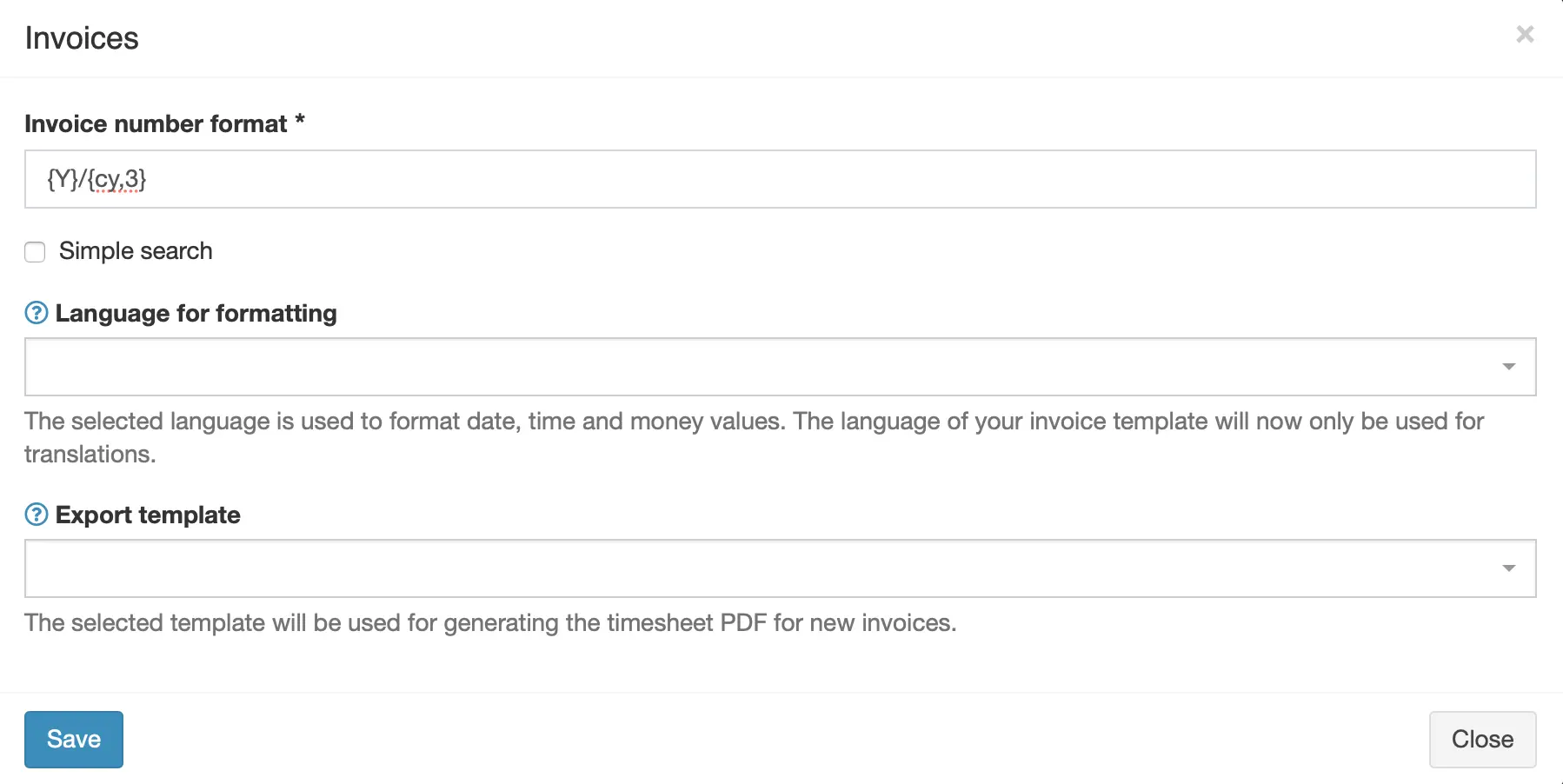

本外掛程式所提供的用於設定匯出模版與語言地區的選項
Screenshot

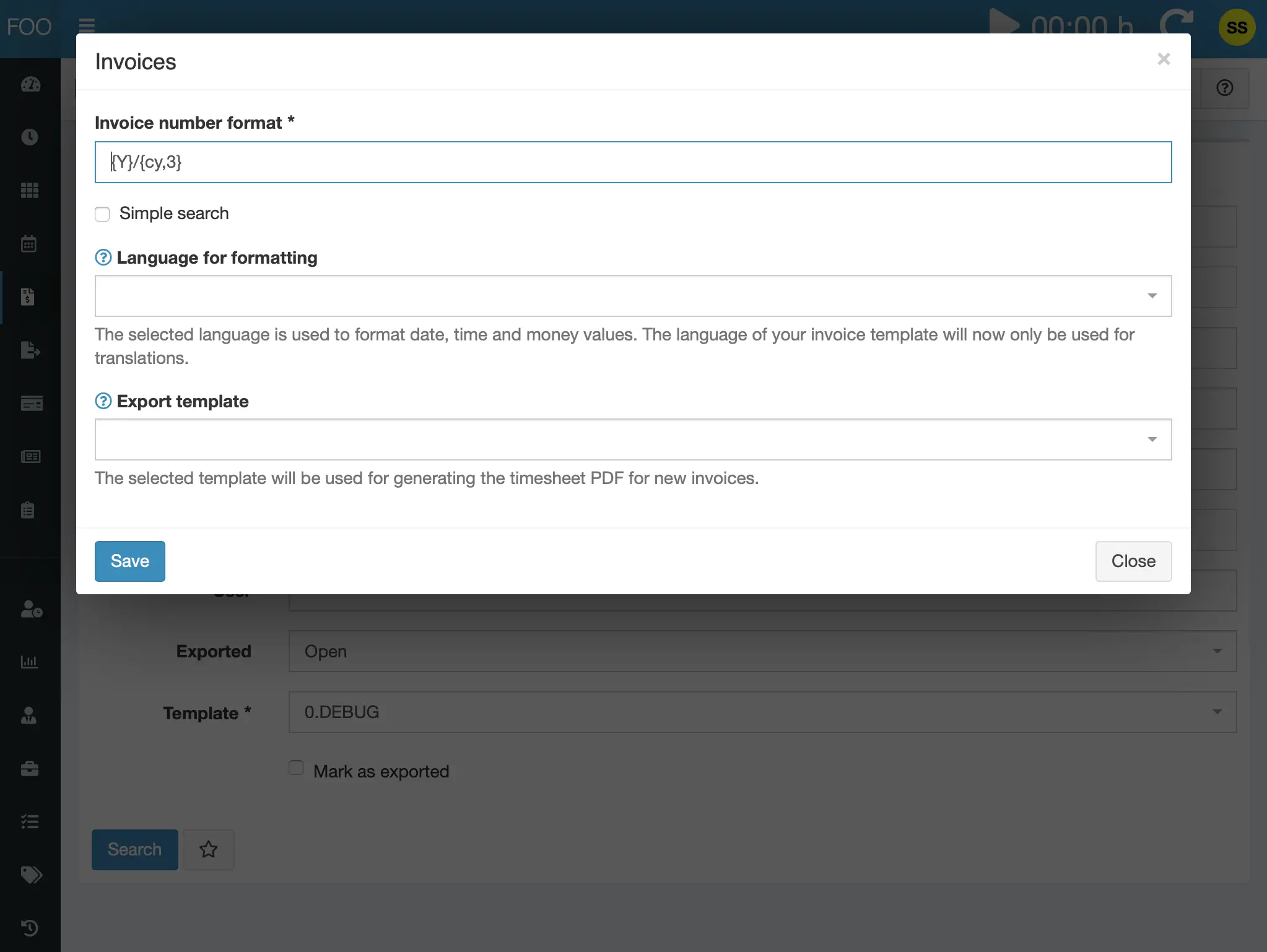

本外掛程式所提供的用於設定匯出模版與語言地區的收支單選項

常見問題

這些常見問題由本外掛程式的開發者提供。

You can buy the plugin via the Marketplaces 'Lemon Squeezy' or 'Gumroad' and pay with Credit Card or PayPal. Both offer instant access to the purchases.

Support-questions, bug-reports and feature-requests will be answered in this Github repository
